PoE Adapters & Power Management

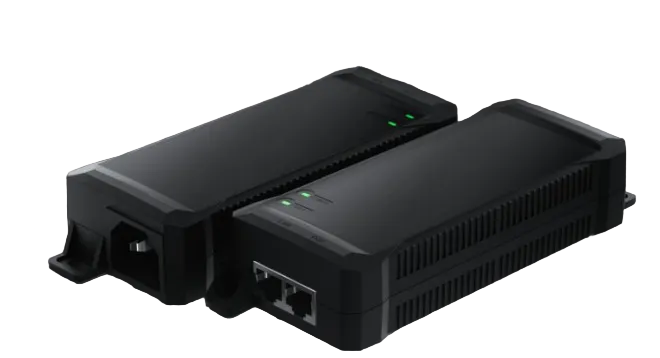

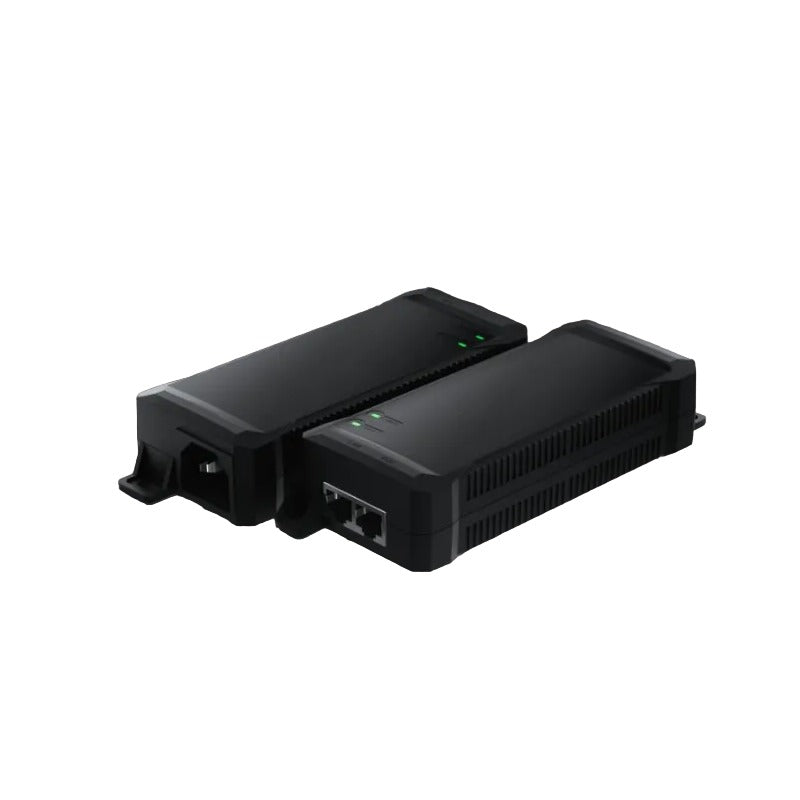

PoE Injector – 90W 802.3bt (POE-90W)
SKU: POE-90W

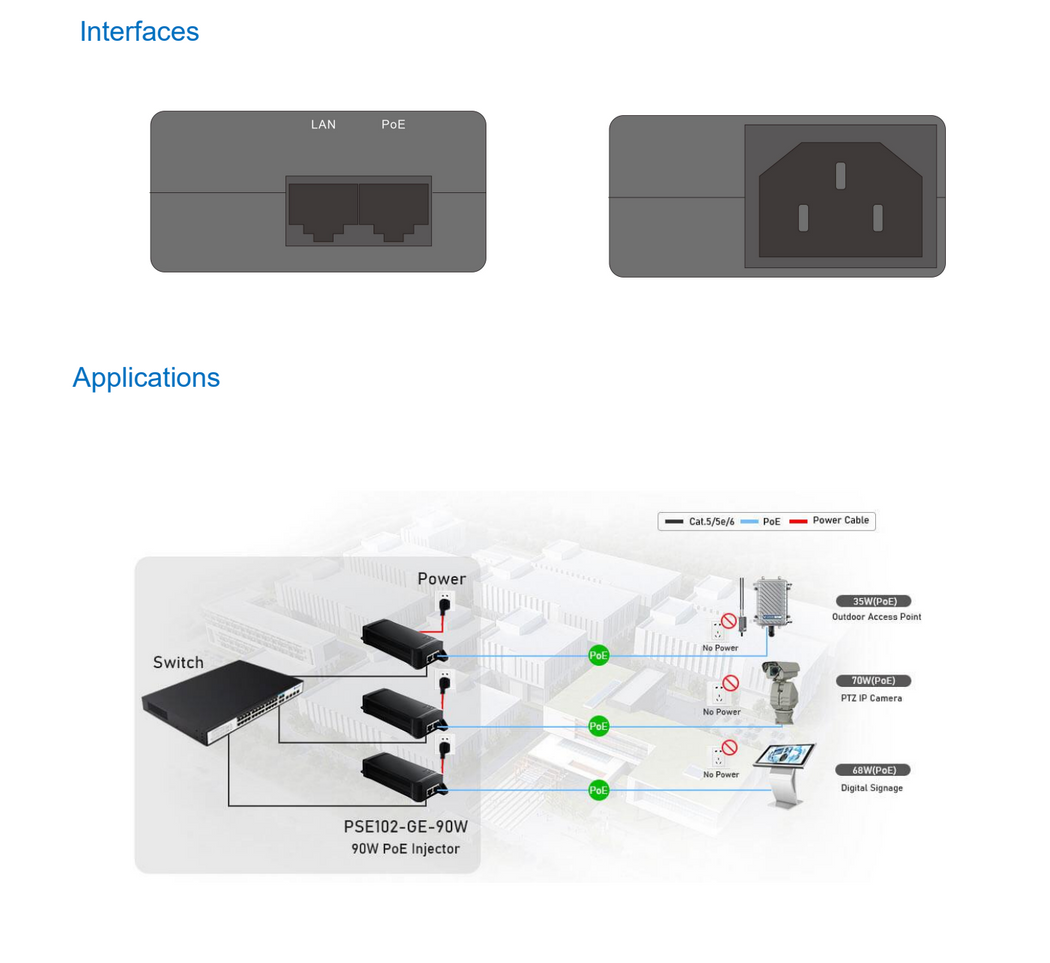

This 90W PoE Injector delivers high-power PoE over a single Cat6 cable. IEEE 802.3bt (Type 4, Class 8), universal AC input 100-240V, gigabit passthrough. Designed for enterprise AV, retail POS, and high-draw display installations. Compatible with: Square Terminal and Square Register (retail POS) Clover Station and Clover Flex (retail POS) VeriFone and Ingenico payment terminals Digital signage displays and media players Conference room cameras and AV control systems Any device requiring up to 90W PoE power delivery Common Setups: For Wall- 6 Inch cable, 90 degree For Door- 10 foot Extension Cable, Straight For Glass- 10 foot Extension Cable, 90 degree
PowerBx PoE Adapters — Power and Gigabit Data Over a Single Ethernet Cable
The PowerBx PoE Adapter line delivers both power and high-speed Gigabit data to USB-C devices through a single Cat5e, Cat6, or Cat6A Ethernet cable — no power outlet required. Purpose-built for enterprise AV integrators, the PowerBx PoE Adapter installs cleanly into conference rooms, room scheduling displays, kiosks, digital signage, retail POS systems, and hybrid workplace deployments.
Choose the right unit for your deployment: the POE-GIG-DVR for reliable 5V fixed-output applications, the POE-GIG for multi-voltage USB-C Power Delivery across a broader range of devices and PoE infrastructure, or the POE-90W — a true 90W IEEE 802.3bt PoE++ injector built for demanding commercial AV environments, including unconditioned spaces where commodity injectors fall short.
Compatible Devices
- iPad A16 (Gen 10 & 11)
- iPad 10.2"
- iPad Mini Gen 4 / Gen 5 / Gen 6 / Gen 7
- Samsung Galaxy Tab A8 (T220)
Common Deployment Setups
| Deployment | Recommended Variant | Cable |
|---|---|---|
| Wall | 7 Inch / 90° | 6" angled |
| Door | 10 Foot Extension / Straight | 10ft straight |
| Glass | 10 Foot Extension / 90° | 10ft angled |
Choose Your Unit
| Model | PoE Standard | Output | Data | Best For |
|---|---|---|---|---|
| POE-GIG-DVR | IEEE 802.3af | 5V fixed / 2A / 10W | Gigabit | Standard iPad and tablet deployments, room scheduling |
| POE-GIG | IEEE 802.3af / 802.3at / 802.3bt | 5V/9V/12V/15V auto PD / up to 3A (15V@2A) | Gigabit | Multi-device deployments, high-power tablets, cameras, scheduling displays |
| POE-90W | IEEE 802.3bt / 802.3at / 802.3af | 90W max (Type 4, Class 8) | Gigabit | High-draw PTZ cameras, access points, PoE-powered displays, unconditioned spaces |
POE-GIG-DVR — PoE to USB-C, 5V Fixed Output
The POE-GIG-DVR is a straightforward, reliable PoE-to-USB-C adapter that converts IEEE 802.3af Power over Ethernet into stable 5V USB-C output — while simultaneously delivering Gigabit Ethernet data — over a single cable. Ideal for wall-mounted iPads, conference room scheduling panels, and kiosk deployments where 5V charging is sufficient.
- Powers and connects any USB-C device over a single Ethernet run
- Eliminates the need for separate AC power outlets or cable runs
