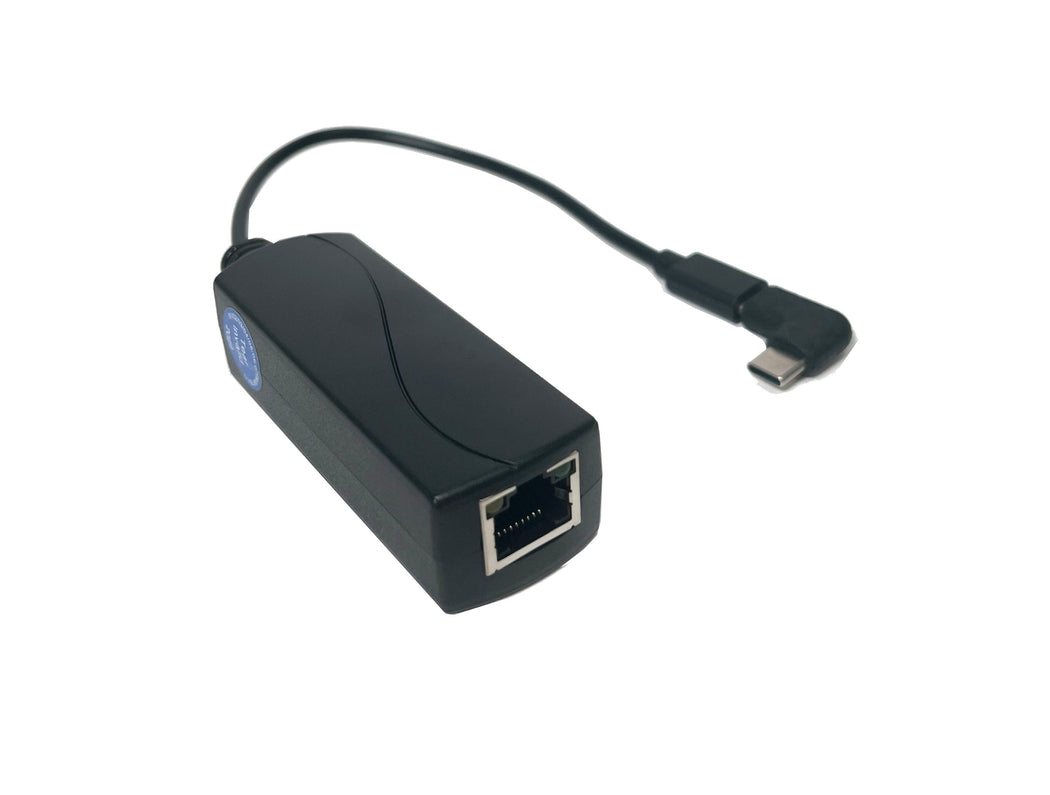

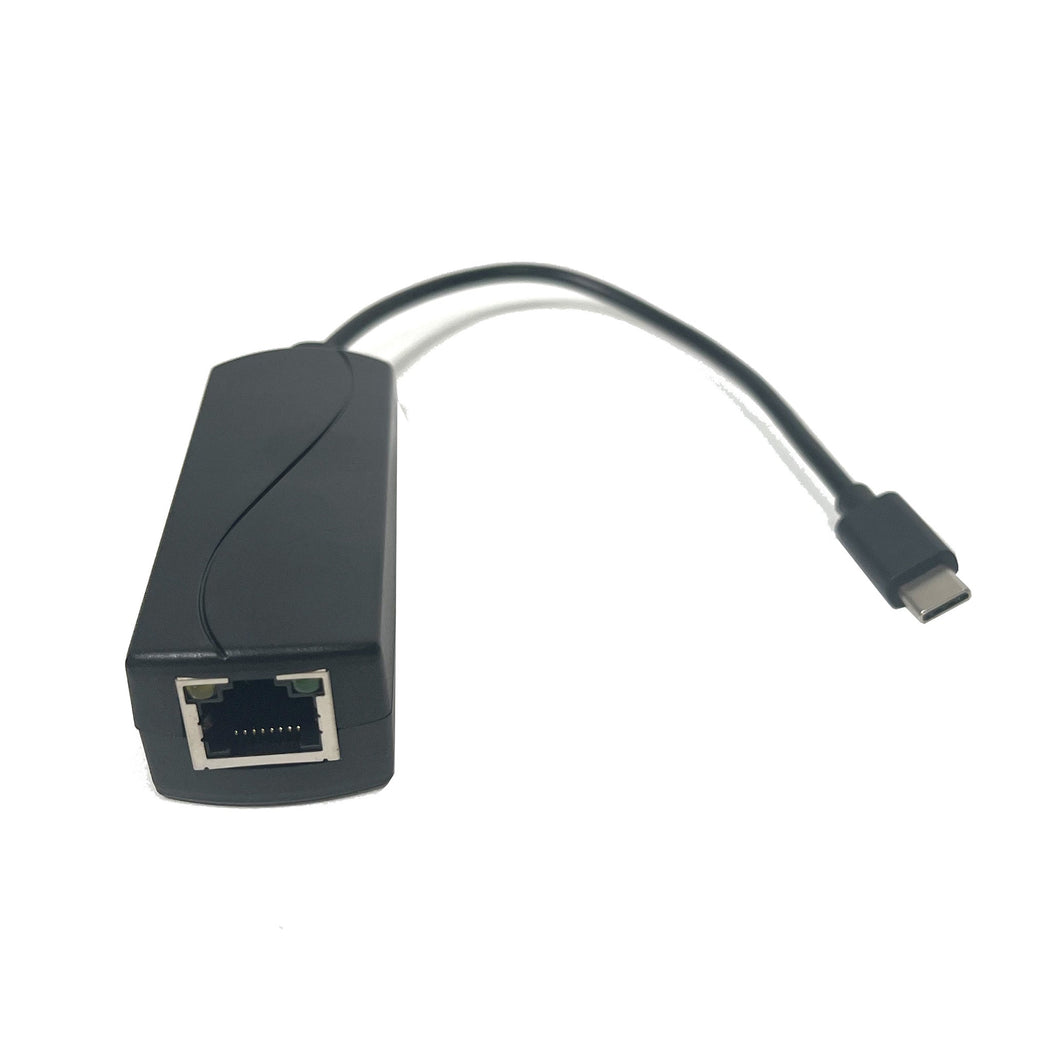

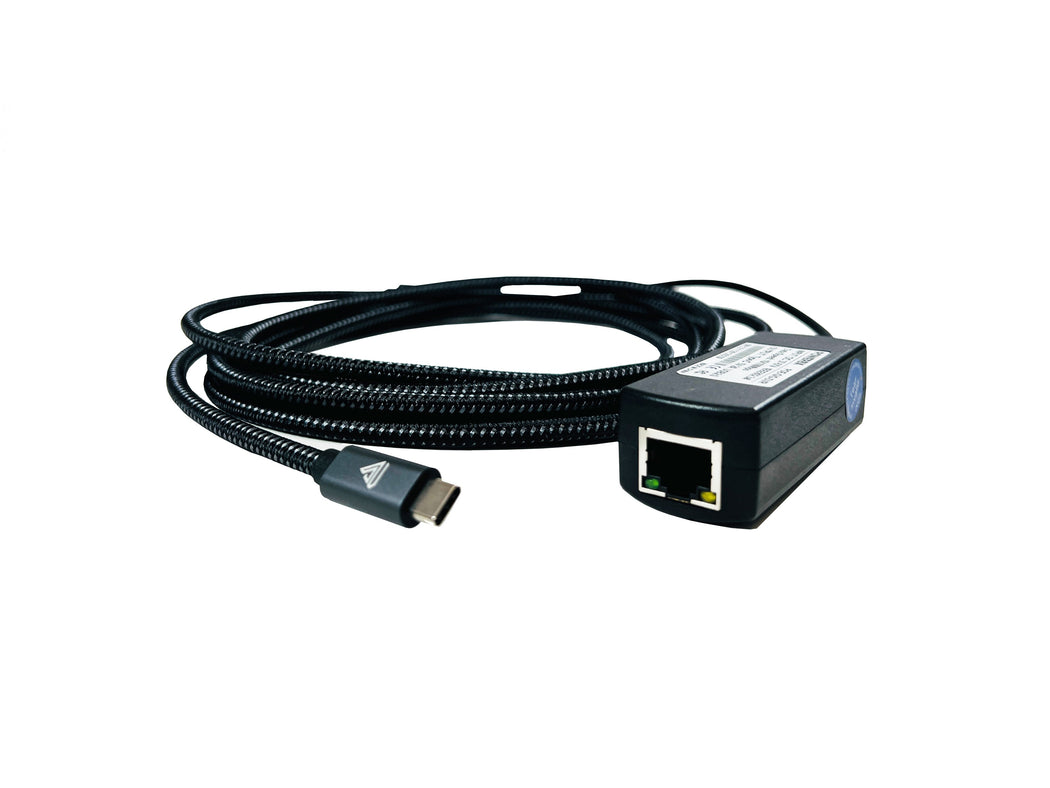

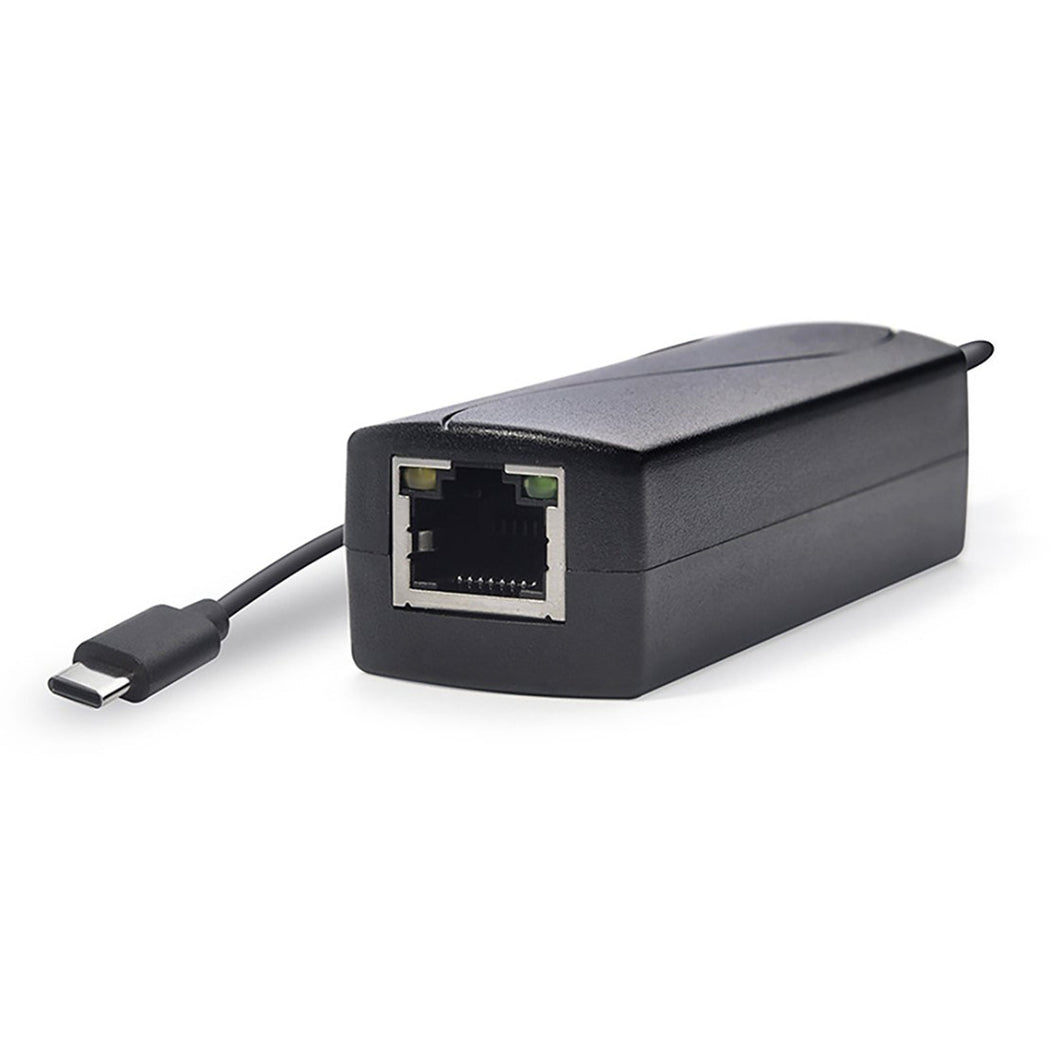

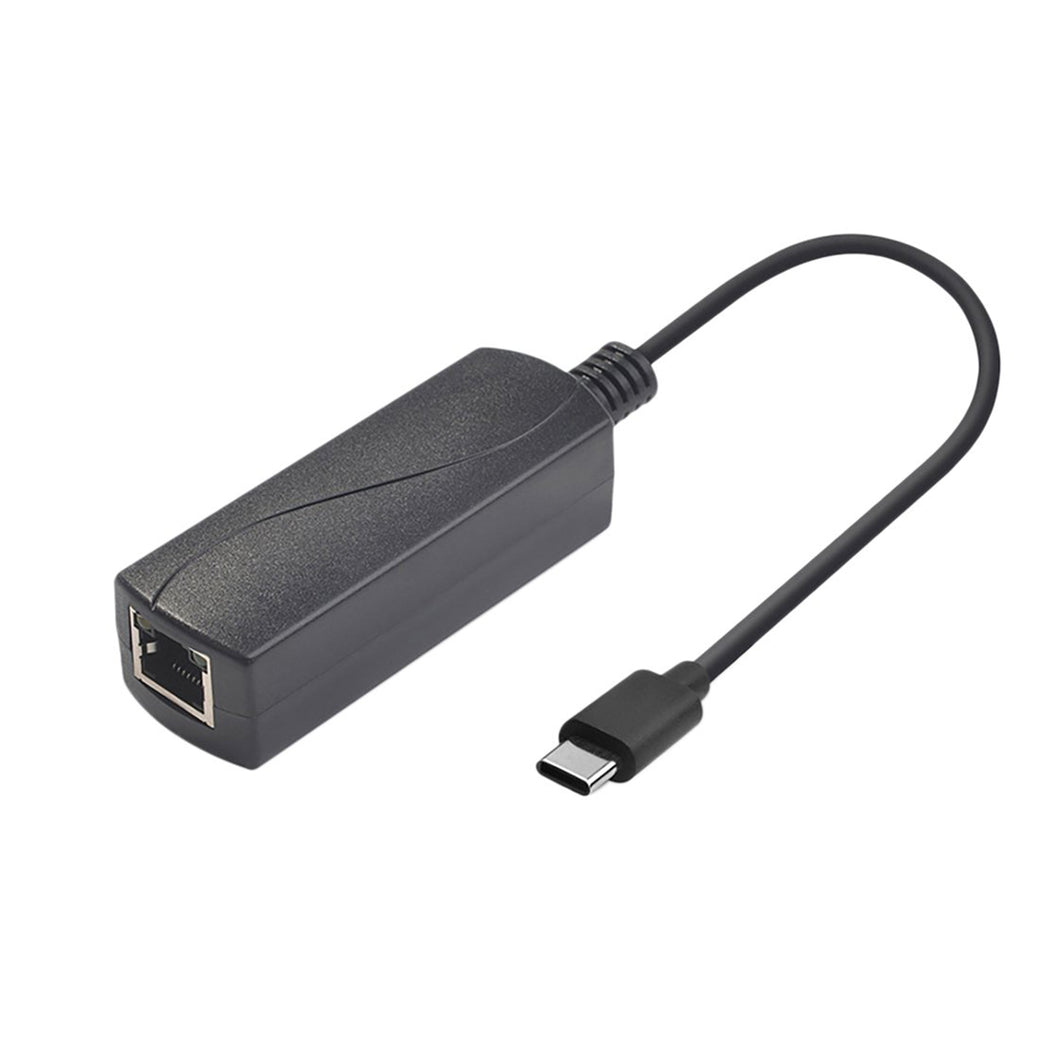

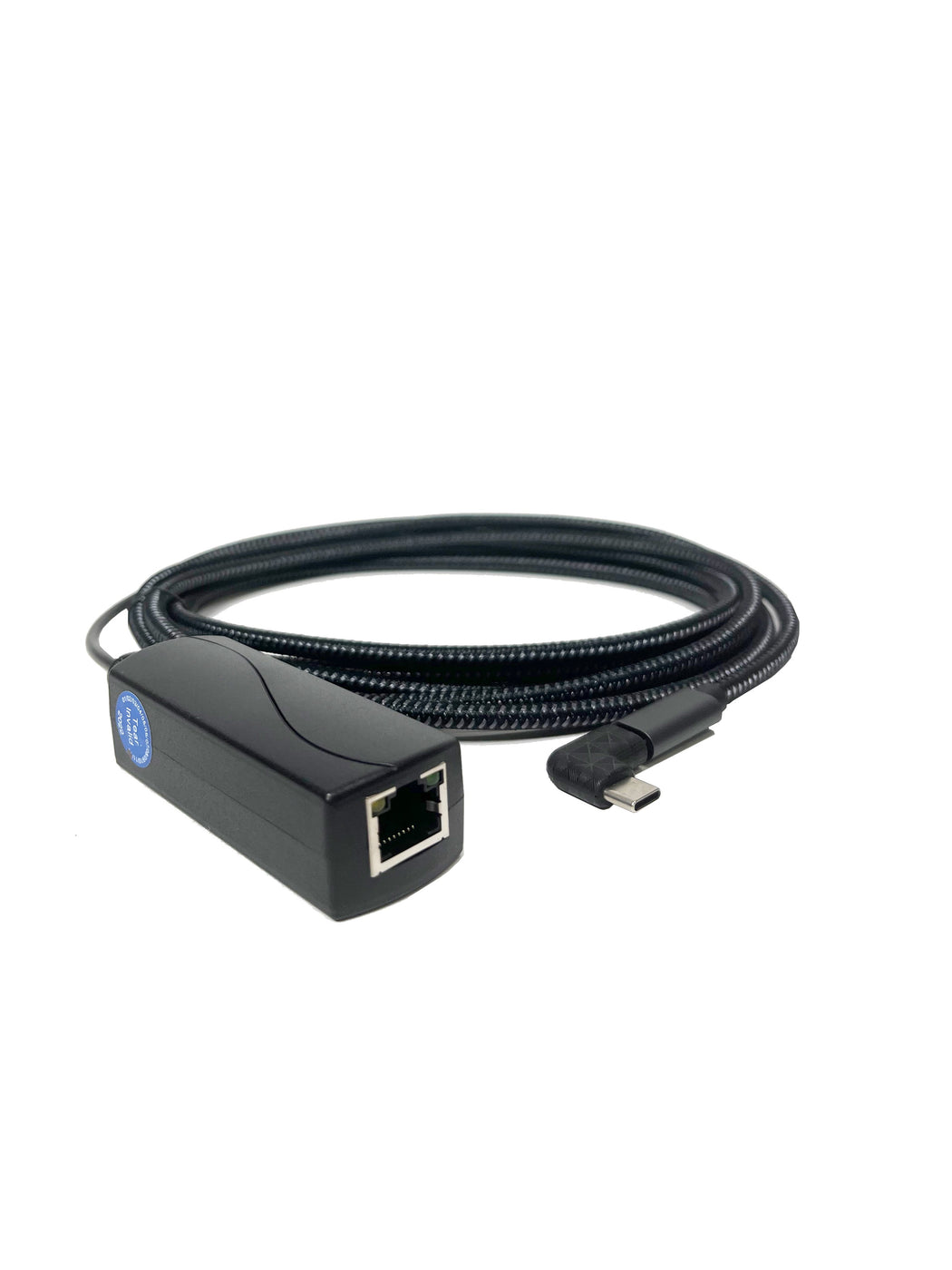

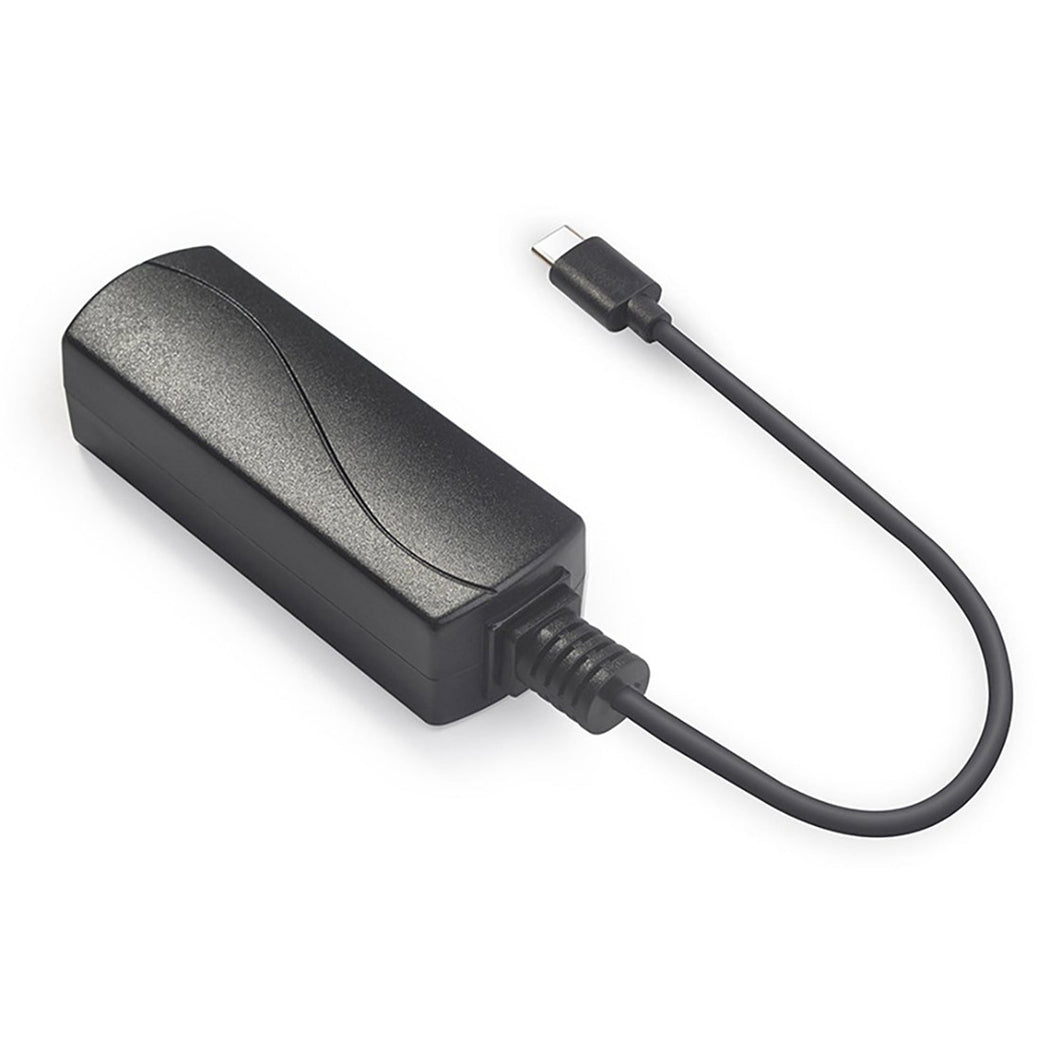

PowerBx POE-GIG-DVR — PoE to USB-C Adapter, 5V Fixed Output

The PowerBx POE-GIG-DVR converts IEEE 802.3af Power over Ethernet into stable 5V USB-C output — while simultaneously delivering Ethernet data — over a single Cat5/Cat6 cable. No power outlet required. Purpose-built for enterprise AV integrators deploying wall-mounted iPads, room scheduling displays, kiosks, and USB-C powered AV devices in conference rooms and commercial spaces.

• Powers and connects any 5V USB-C device over a single Ethernet run
• Eliminates separate AC power outlets and cable runs
• Compatible with any IEEE 802.3af PoE switch or injector
• Plug-and-play — no software or configuration required
• Available in 7" straight, 7" 90-degree, 10ft straight, and 10ft 90-degree cable configurations

Technical Specifications

• PoE Input Standard: IEEE 802.3af
• Input Voltage: DC 37–57V
• Output Voltage: 5V fixed
• Output Current: 2A (10W max)
• Output Connector: USB-C (Type-C)
• USB Standard: USB 2.0
• Data Speed: 10/100 Mbps
• Interface: RJ45 to USB-C

Common Use Cases

• Room Scheduling Displays — Wall-mount an iPad or USB-C scheduling panel with a single Cat6 run
• Conference Room Kiosks — Power iPad-based check-in, visitor management, or AV control panels
• Digital Signage — Power USB-C displays in lobbies, hallways, and common areas from existing PoE infrastructure
• Retail POS Terminals — Deploy iPad POS systems cleanly without visible power adapters
