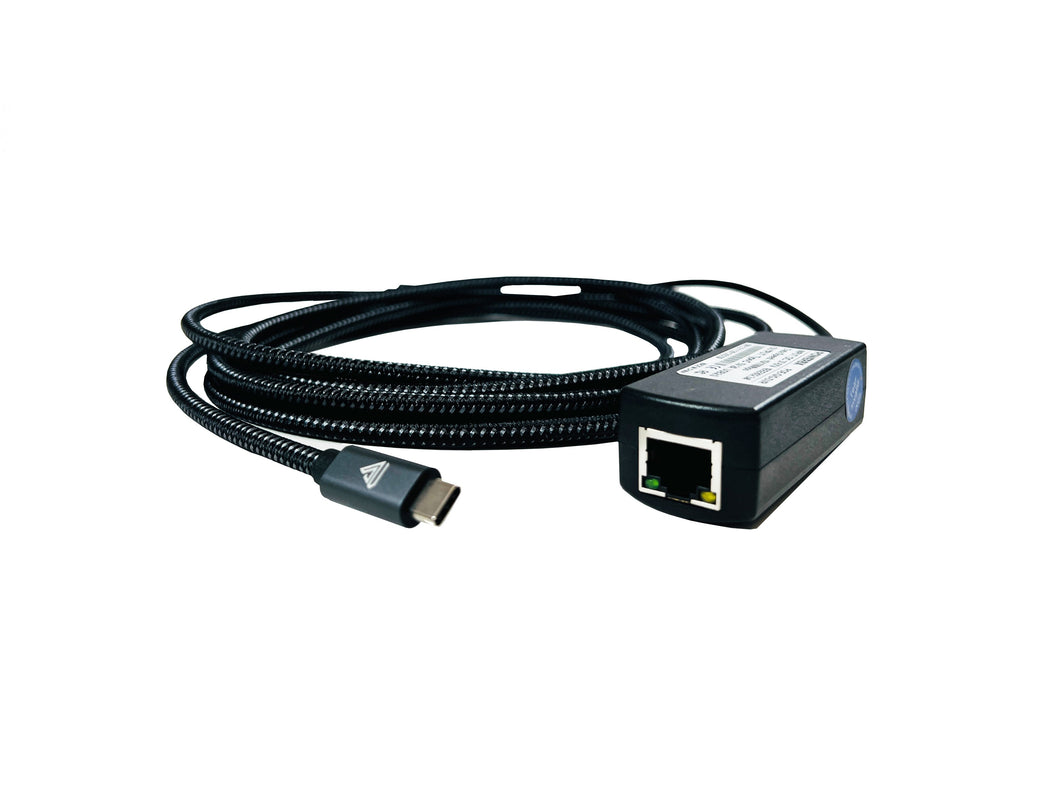

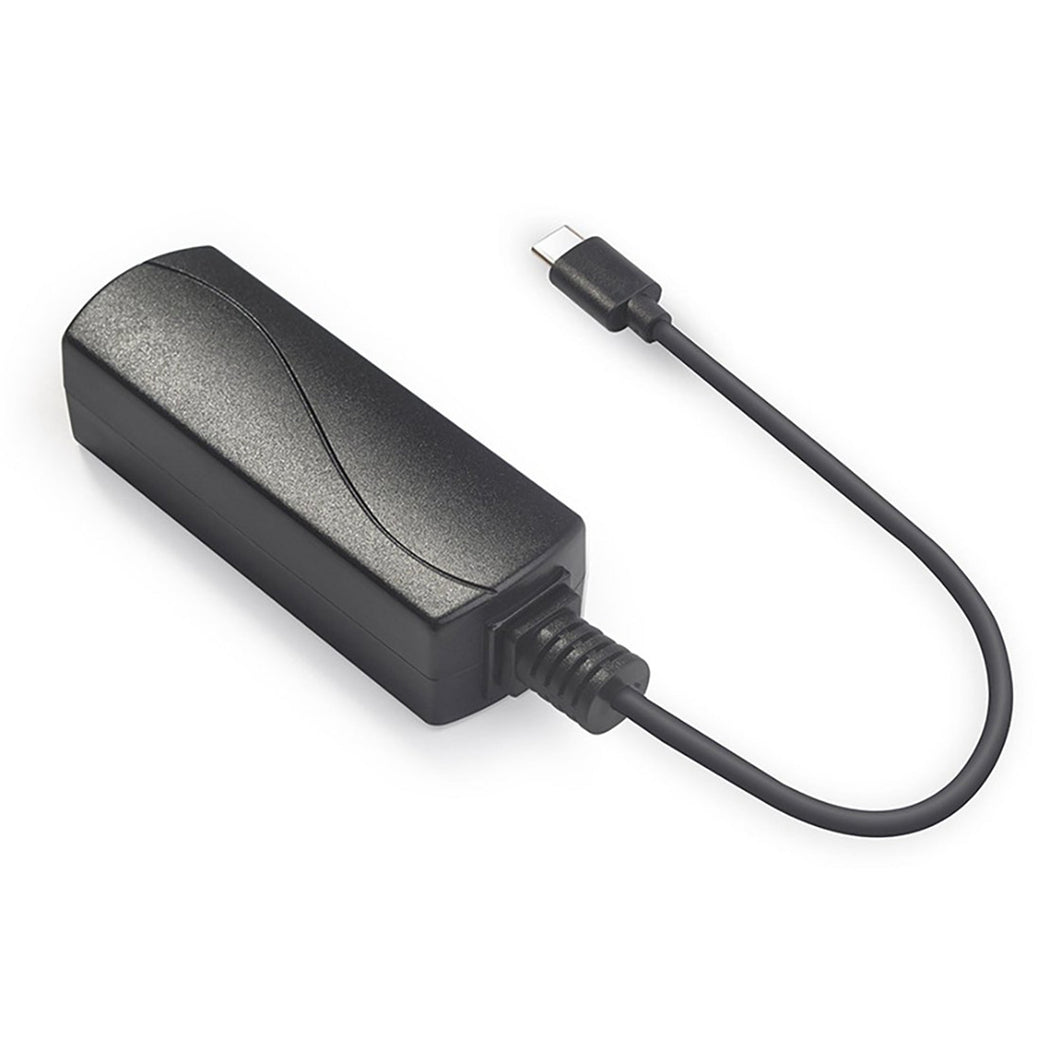

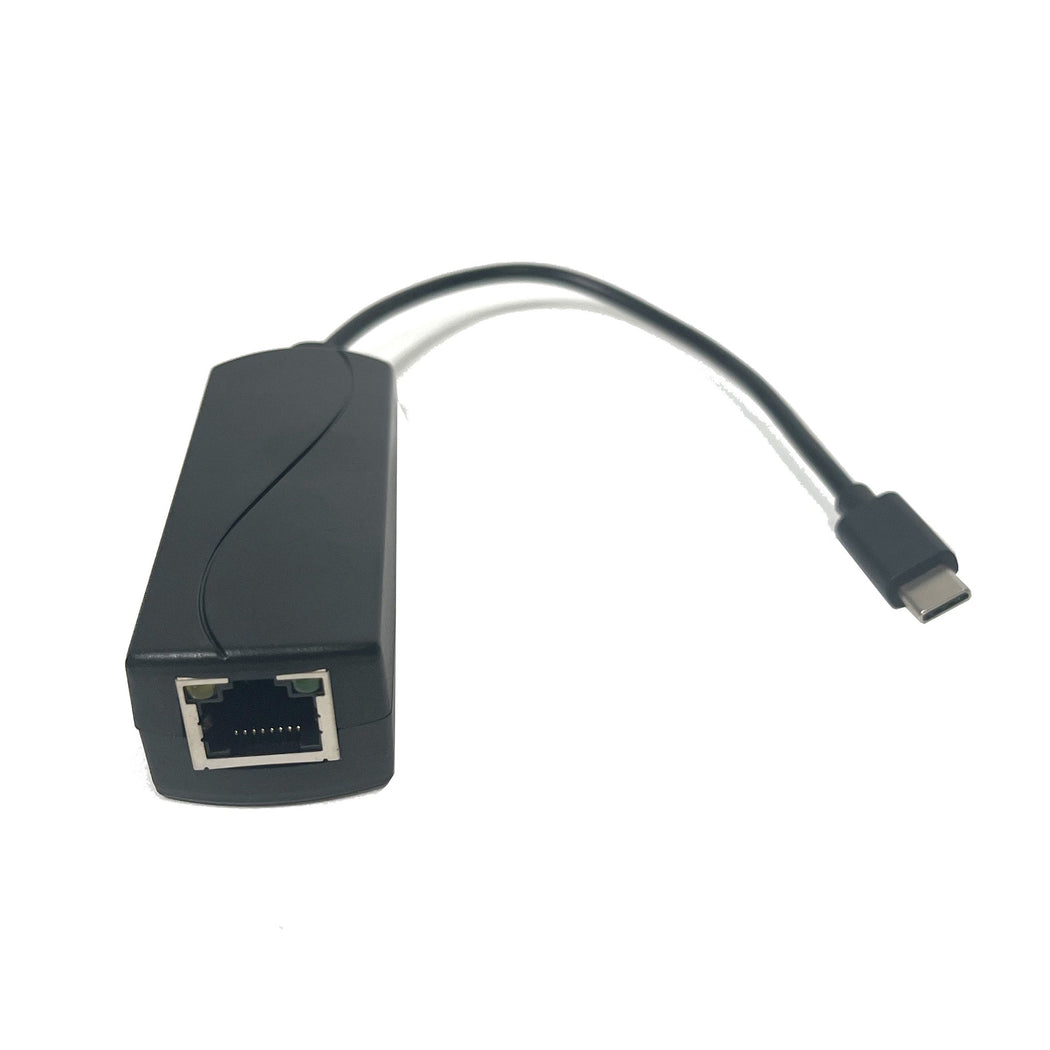

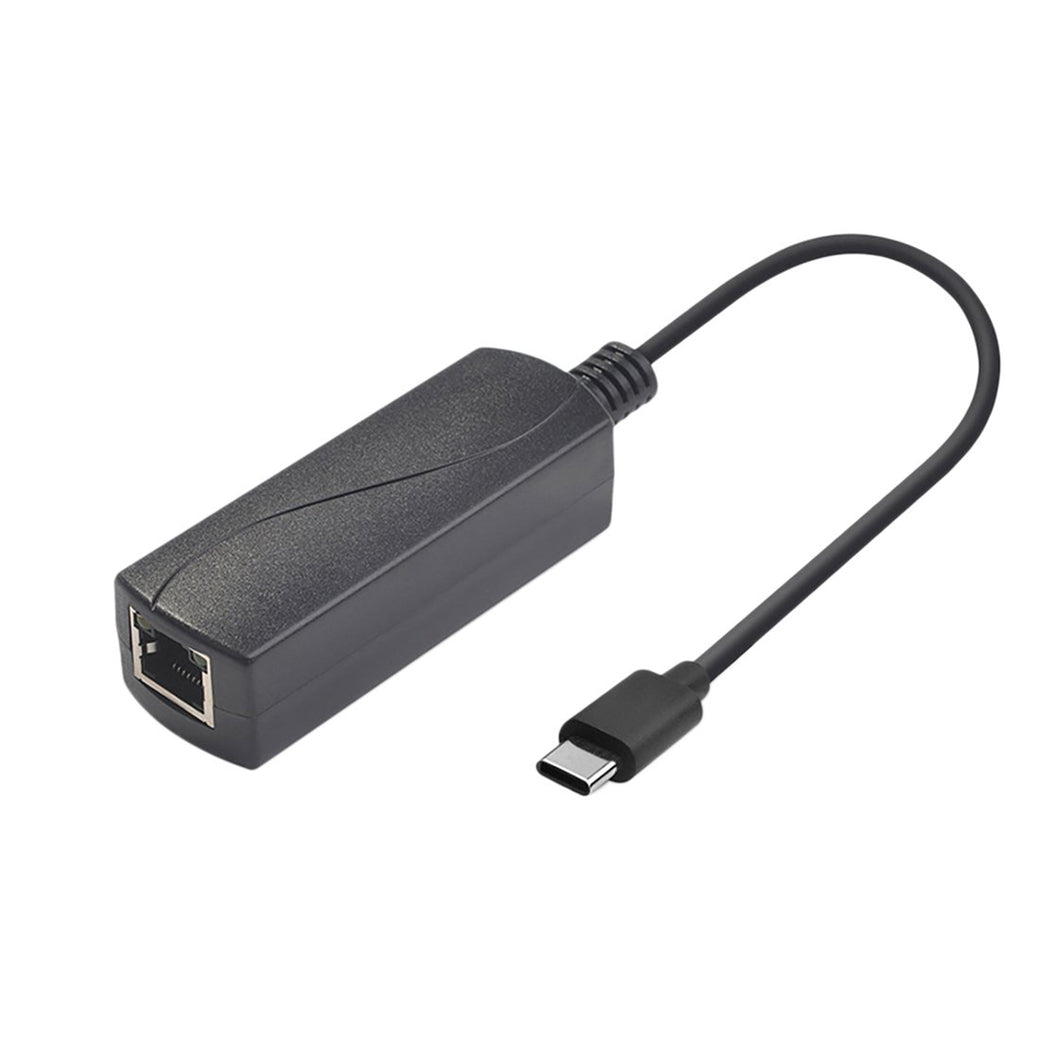

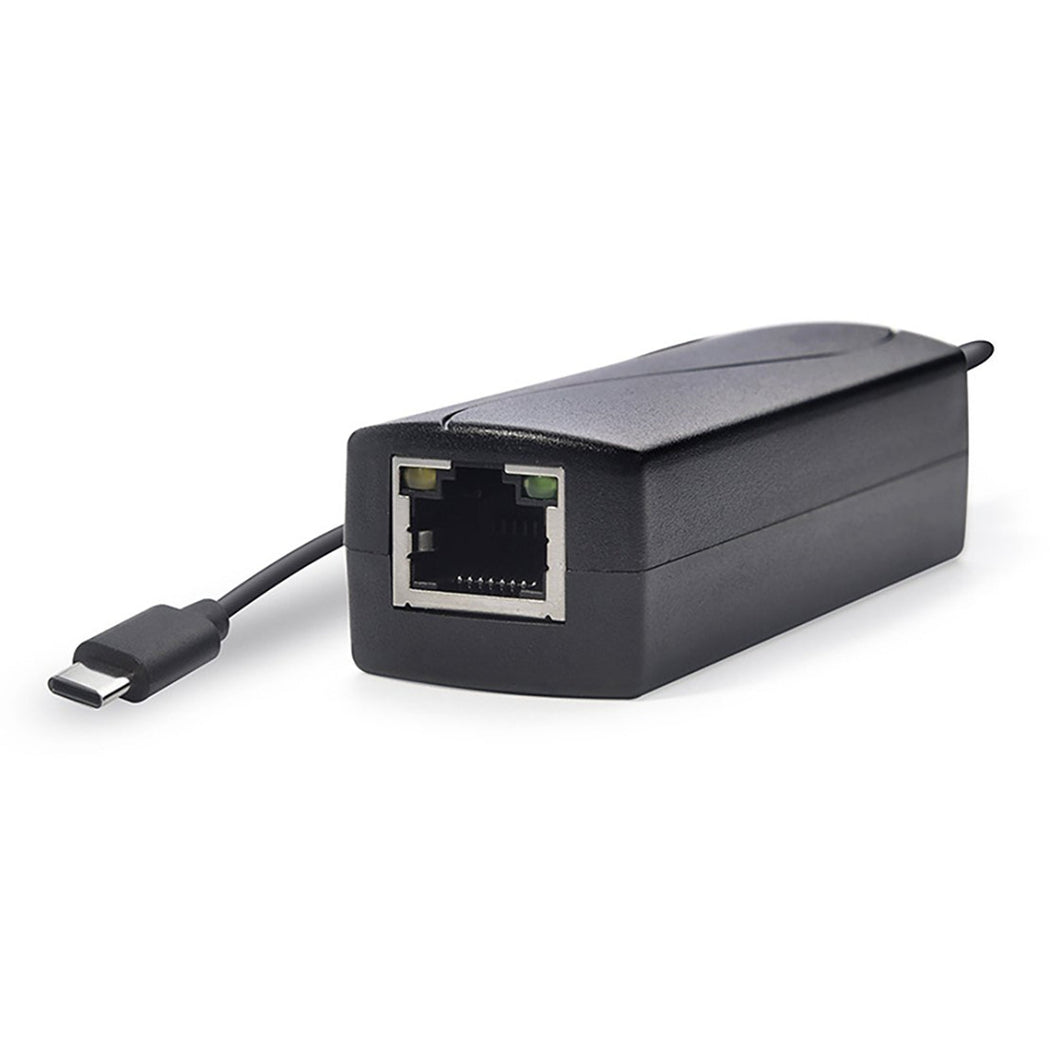

PowerBx POE-GIG — PoE to USB-C Adapter, Multi-Voltage Auto PD

The PowerBx POE-GIG is a gigabit PoE to USB-C adapter with full USB-C Power Delivery negotiation. It auto-selects the optimal output voltage — 5V, 9V, 12V, or 15V — at up to 3A, based on what your connected device requests. IEEE 802.3af/at compliant (44–57V PoE input). Power and gigabit data over a single Cat5/Cat6 cable. No AC outlet required.

Unlike fixed-voltage adapters that force 5V regardless of the device, the POE-GIG negotiates the correct voltage automatically — enabling faster charging and broader compatibility across USB-C laptops, tablets, scheduling displays, cameras, and AV devices.

• Auto-sensing USB-C PD: 5V/3A, 9V/3A, 12V/3A, 15V/2A — negotiates optimal voltage per device
• 1500V isolation protection
• Gigabit Ethernet data (10/100/1000 Mbps) and USB-C power over a single cable
• IEEE 802.3af/at input — works with standard PoE and PoE+ switches and injectors
• USB 2.0/3.0 compatible
• Compatible with Android, iOS, and Harmony OS devices

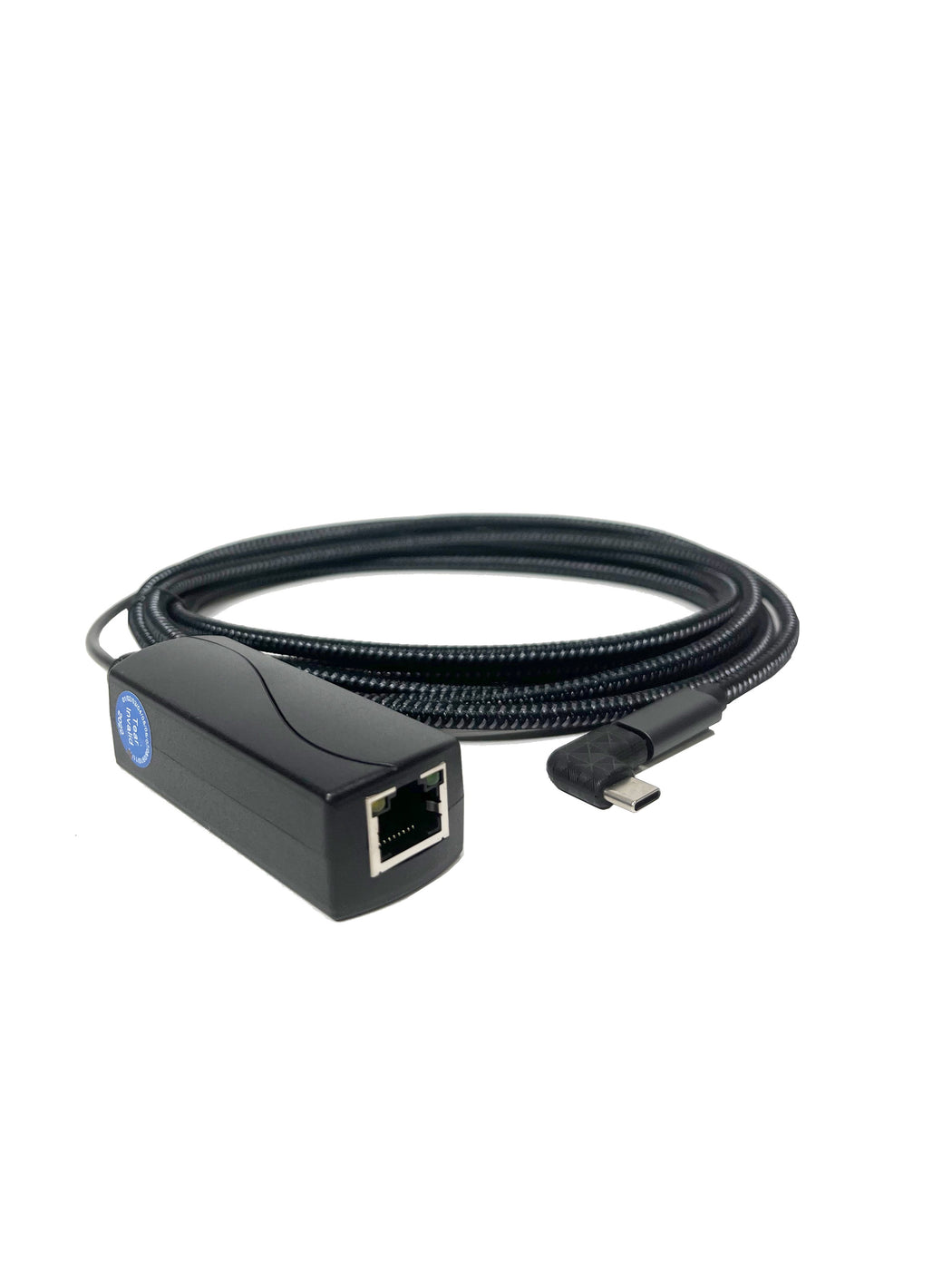

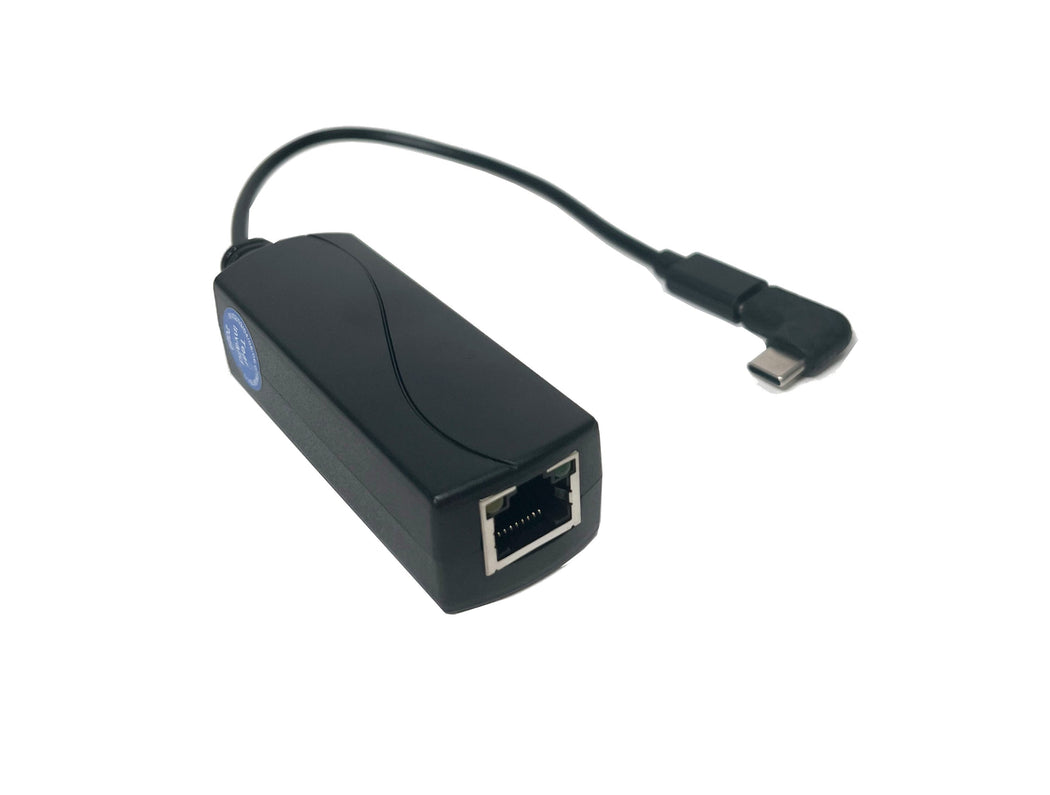

• Available in 7" straight, 7" 90-degree, 10ft straight, and 10ft 90-degree cable configurations

Technical Specifications

• PoE Input Standard: IEEE 802.3af / 802.3at
• PoE Input Voltage: 44–57V DC
• Power Supply Pins: Mode A 1,2+/3,6− | Mode B 4,5+/7,8−
• Output: 5V/3A, 9V/3A, 12V/3A, 15V/2A — self-adapting USB-C PD
• Output Connector: USB-C (Type-C)
• USB Standard: USB 2.0 / 3.0
• Transmission Rate: 10/100/1000 Mbps (Gigabit)
• Interface: RJ45 to Type-C
• Isolation Protection: 1500V high voltage
• Compatible OS: Android, iOS, Harmony OS
• Compatible Devices: Laptop, Tablet, Phone
• Dimensions: 80mm × 35mm × 25mm (3.15" × 1.38" × 0.98")
• Cable Length: 225mm
• Weight: 80g

Common Use Cases

• Room Scheduling Displays — Power and connect USB-C scheduling panels over a single Cat6 run
• iPad Pro & USB-C Tablets — Deliver optimal fast-charge voltage automatically via PD negotiation
• AV Cameras & Controllers — Power USB-C cameras, touchpanels, and AV controllers from your PoE switch
• Kiosks & Digital Signage — Single-cable deployment in lobbies, retail, and hospitality environments
• Laptops — Power USB-C laptops directly from PoE infrastructure in meeting rooms and hot desks
