Audio de-embedder for MAC Mini

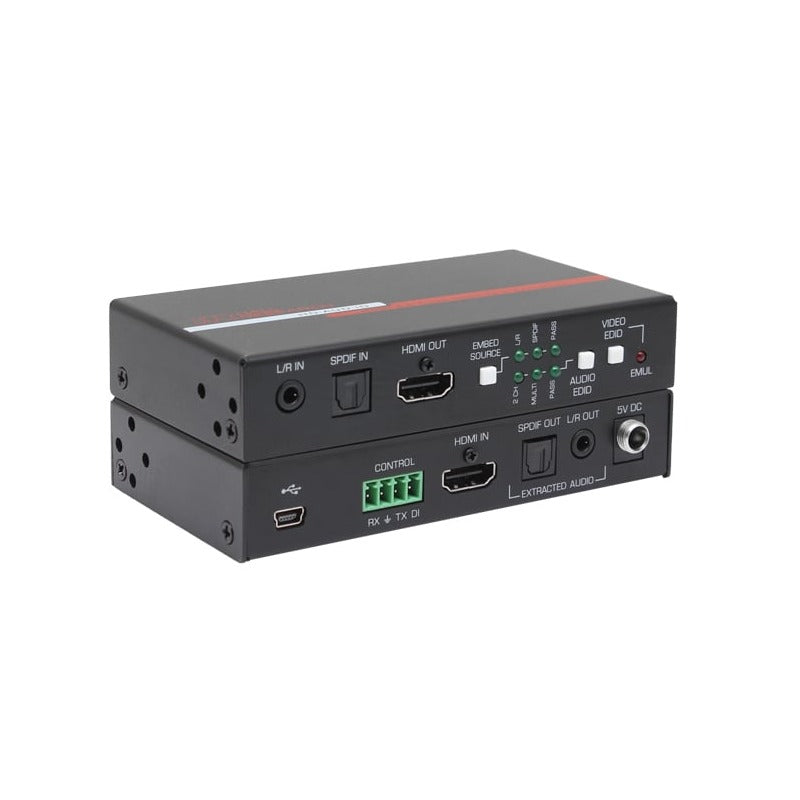

The Hall Technologies HD-AUD-IO is an all-in-one HDMI audio manager capable of extracting audio from (de-embedding) and inserting audio into (embedding) an HDMI video signal. It provides one HDMI input with a corresponding HDMI output, allowing for audio extraction to both 2-channel L/R analog and Digital SPDIF (TOSLINK). Additionally, it offers two audio inputs (analog and digital) from which users can select which audio to embed in the HDMI output, such as pass-thru, SPDIF digital, or 3.5mm L/R analog. Advanced EDID management functions also allow users to control the video and audio portion of the EDID, as well as the ability to learn the EDID connected to its HDMI output. It has a video bandwidth of 18 Gbps and supports resolutions up to 4K @ 60 Hz 4:4:4 with HDR, with support for HDCP 2.2 and 1.4. Finally, the device can generate and output a blank HDMI signal with audio embedded even if there is no HDMI input (known as "HDMI Audio Bridging"), enabling the distribution of audio-only signals over an HDMI network.

Features:

• Supports 4K/60 4:4:4, HDR, HDCP 2.2 & 1.4
• Extracts both LR analog and digital audio embedded in the HDMI input
• Embeds either LR analog or digital audio into the HDMI output
• Generates HDMI output with embedded audio with no HDMI input
• Configurable digital input for muting audio and/or video
• Can pass-thru or emulate EDID
• 18 Gbps bandwidth for compatibility with HDMI 2.0b
• Backward compatible to HDMI 1.4 and DVI Specifications
• Supports multi-channel digital and 2-channel analog audio
• EDID management
• RS-232 controllable

Technical Specifications:

• Warranty - 1 Year
