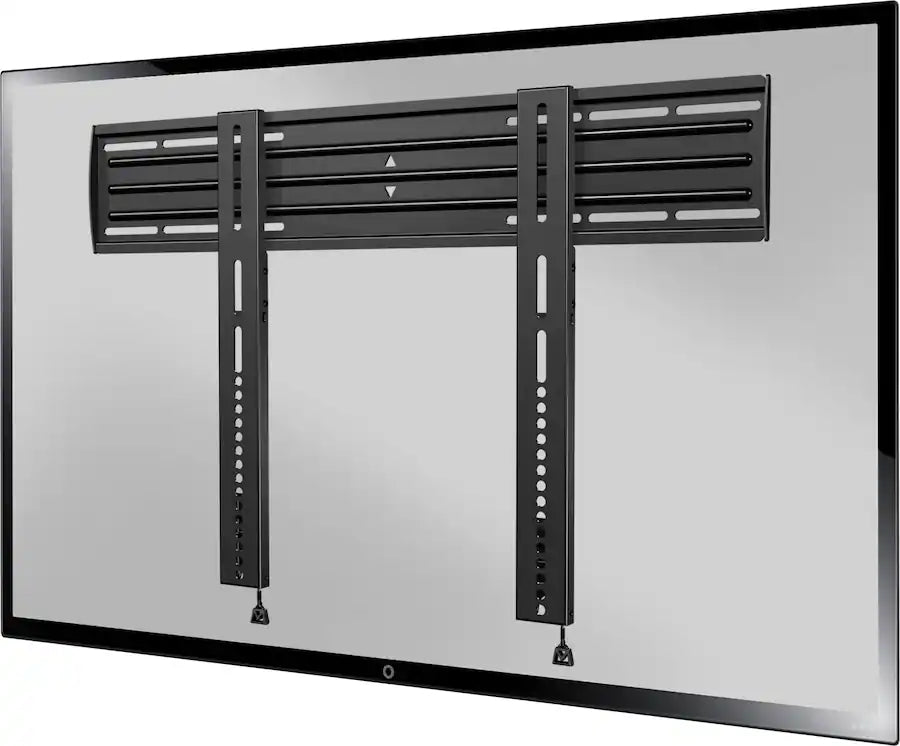

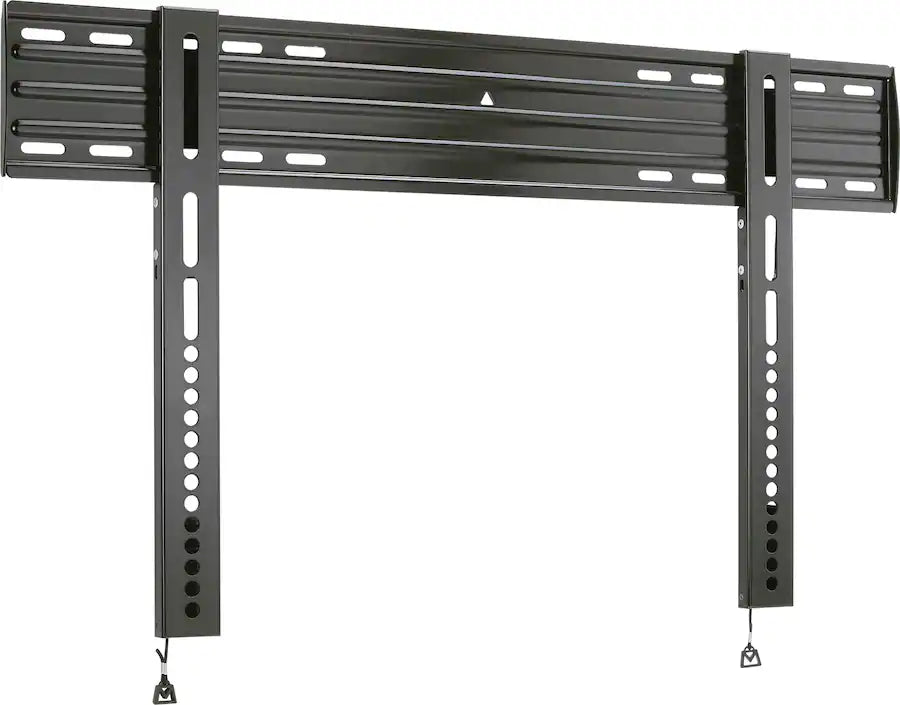

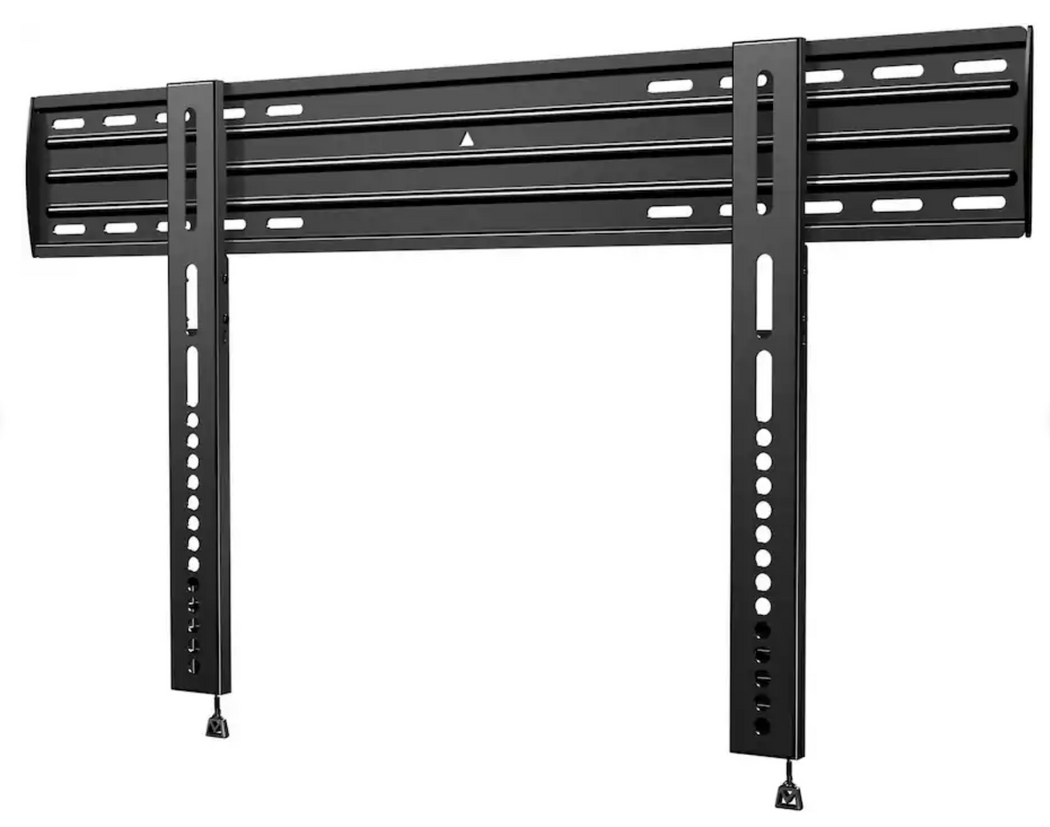

Super Slim Fixed-Position TV Wall Mount for Most 32"-80" TVs up to 150 lbs — DIS-SN-1
SKU: DIS-SN-1
DIS-SN-1 — Super Slim Fixed-Position TV Wall Mount is engineered for enterprise display deployments where aesthetics and structural integrity are non-negotiable. Designed for large-format commercial displays, digital signage, and executive boardroom installations, this mount places your screen just 0.67" (1.7 cm) from the wall — delivering a flush, architectural finish that complements ultra-thin OLED and LED panels.
Designed for Enterprise Environments
AV integrators and facility managers trust fixed-position mounts for permanent installations where display position is locked and structural load is consistent. The DIS-SN-1 supports displays up to 150 lbs and spans compatibility from 32" to 80" — covering virtually every commercial display format deployed in conference rooms, lobby signage, and executive suites.
Key Features

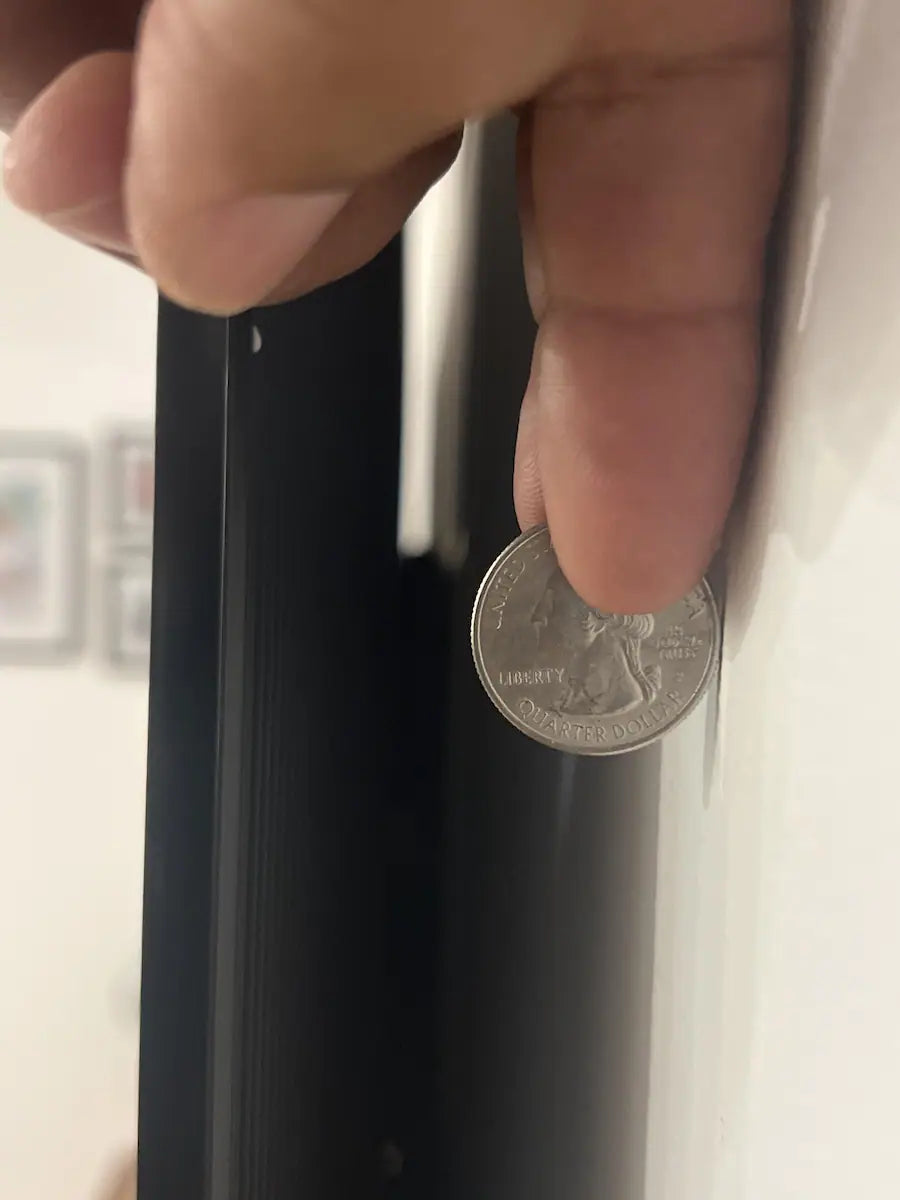

- Ultra-slim 0.67" wall clearance — TV sits flush like a framed artwork; ideal for OLED and slim-bezel commercial displays
- Patented ClickStand cable access — post-installation cable management without removing the display from the wall
- Quick-release tabs — hidden on mounting brackets; pull down to unlock TV from wall plate for fast cable access during service calls
- Lateral shift adjustment — slide the display left or right on the wall plate for precise final positioning without reinstalling
- 150 lb rated load capacity — supports legacy commercial flatscreens and modern large-format displays
- VESA compatible: 200×200mm to 300×300mm — fits LG, Samsung, Panasonic, and most major commercial display brands
- Adjustable bracket spacing — wall-side bracket spread adjusts to fit your display's mounting hole pattern
- 30.5" horizontal back bar — wide stance for load distribution on drywall and solid masonry (brick, concrete)
- Compatible with 32", 50", 55", 65", 75", 80" displays — covers the full commercial display range
Technical Specifications
| SKU | DIS-SN-1 |
| Compatible Display Sizes | 32" – 80" |
| Max Load | 150 lbs (68 kg) |
| Wall Clearance | 0.67" / 1.7 cm |
| VESA Compatibility | 200×200mm, 200×300mm, 300×300mm |

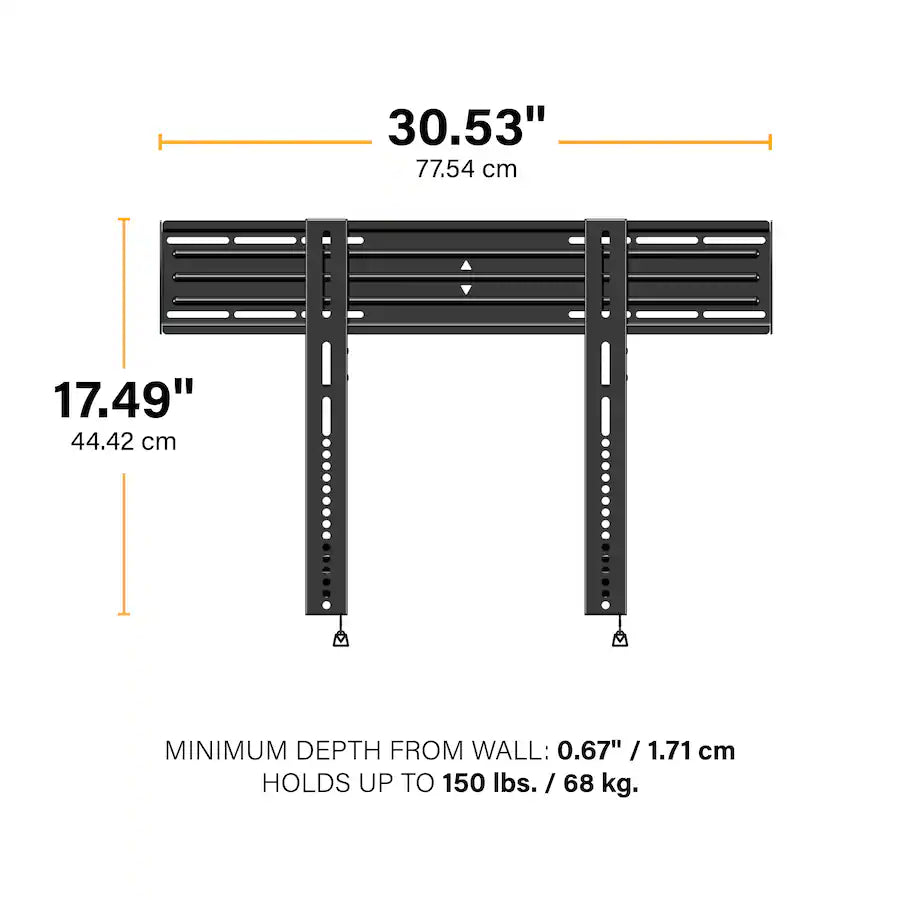

| Horizontal Back Bar Width | 30.5 inches |
| Mount Type | Fixed (flush/flat) |
| Adjustment | Lateral shift (post-installation); height requires TV removal |
| Wall Compatibility | Drywall stud, solid brick, concrete masonry |
| Compatible Brands | LG, Samsung, Panasonic, Sony, and most VESA-compliant displays |
| Cable Access | Patented ClickStand + quick-release tabs (no TV removal required) |
Installation Notes
The DIS-SN-1 installs on standard wood stud, solid brick, and concrete masonry walls. Bracket spacing is field-adjustable to accommodate your display's VESA pattern. Post-installation lateral repositioning is supported without tools. Height repositioning requires removing the television. Cable management access is available at any time via the ClickStand mechanism — no service downtime required.
Ideal Use Cases
- Corporate boardroom and executive office display installations
- Lobby and reception digital signage (permanent fixed mount)
- Conference room AV integration with clean cable routing
- Retail and hospitality display deployments requiring flush aesthetics
- Educational and government facility display infrastructure
